DESCRIPTION

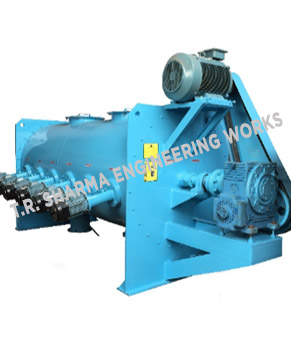

T.R. SHARMA ENGINEERING WORKS Horizontal advance Tube Mill consist of a mixing drum vessel with an inlet, an outlet with discharge valve and a venting spout, a full material mixing shaft, two drum closing end plates that carry flanged end bearing assemblies complete with integratedTeflon gland stuffing box shaft seals and a drive unit complete with power transmission. Advance Tube Mill inclined blade-type plough tools rotate as mixing tools in a special arrangement on the mixer shaft in a horizontal, cylindrical drum vessel. The result is a turbulence in the mix that constantly involves all the product particles in the mixing process. The formation of dead spots or slow-movement zones in the mixing drum is prevented ensuring precise mixing. In some cases, to obtain the desired mixing effect, separately driven high-speed cutter can be installed.
FUNCTION
T.R. SHARMA ENGINEERING WORKS advance Tube Mill is based on the Principle of Mechanical Fluidization of the product. The particular shape, position and rotation speed of the mixing tools, creates a centrifugal vortex motion which allows the materials to be projected in a three-dimensional way and to merge with each other. This ensures that ingredients with different particle size and bulk density are perfectly blended and mixed with high precision within the shortest possible time. It is used for mixing dry powders, granules or short fibers, for agglomerating or granulating the same materials.
- Capacity: 20 to 5,000 liters per batch
- Mixing ratio: 1/100,000
- Variation coefficient (CV): 3 ~ 5%
- End bearing assemblies with various types of air or nitrogen-purged shaft seals, grease sealing and stuffing box.
- Heavy-duty mixing chamber manufactured from carbon steel, 304L / 316L stainless steel.
